LC150X01-SL02 Datasheet - LG

LC150X01-SL02 XGA TFT LCD

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING .

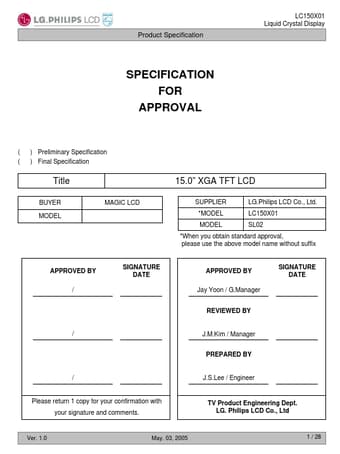

Product Specification SPECIFICATION FOR APPROVAL LC150X01 Liquid Crystal Display ( ) Preliminary Specification ( ) Final Specification Title BUYER MODEL MAGIC LCD 15.0” XGA TFT LCD SUPPLIER LG.Philips LCD Co., Ltd. MODEL LC150X01 MODEL SL02 When you obtain standard approval, please use the above model name without suffix APPROVED BY / SIGNATURE DATE APPROVED BY Jay Yoon / G.Manager REVIEWED BY SIGNATURE DATE / J.M.Kim / Manager PREPARED BY / J.S.Lee / Engineer Please.

LC150X01-SL02 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 15.0 inches(38.016cm) diagonal (Aspect ratio 4:3) 332.8(H) x 262.8 (V) x 22.0(D) mm (Typ.) 0.297mm x 0.297mm 10
