LC1500

Low Consumption Linear Regulator

Leadchip

LC1500 Features

* Low Power Consumption: 75uA（Typ.） Low Output Noise (47uVRMS) Standby Mode: 0.1uA Low Dropout Voltage: 0.46V@500mA (Typ.) High Ripple Rejection: 66dB@100Hz (Typ.) Low Temperature Coefficient: ± 100ppm/C Excellent Line Regulation: 0.05

LC1500 General Description

LC1500 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. LC1500 can provide output value in the range of 1.2V~6.0V every 0.1V step. It also can be customized on command. LC1500 includes high accuracy voltage reference, error amplifier, current limit .

LC1500 Datasheet (465.53 KB)

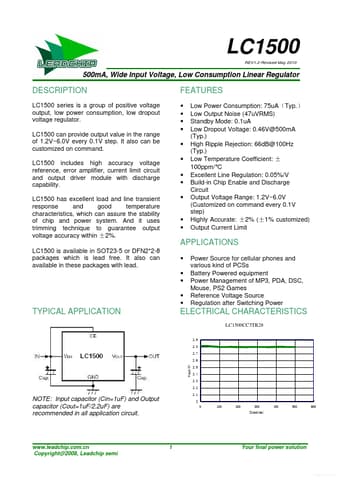

LC1500 Datasheet Preview — Preview of LC1500 PDF

Datasheet Details

Part number:

LC1500

Manufacturer:

Leadchip

File Size:

465.53 KB

Description:

Low consumption linear regulator.
