LC1501CW LOW CAPACITANCE TVS DIODE

Leiditech

LC1501CW Description

LC1501CW Features

* Ultra low leakage: nA level
* Operating voltage: 15V
* Low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
* IEC61000-4-4 (EFT) 40A (5/50ns)
* IEC61000-4-5 (Lightning) 12A

LC1501CW Applications

* USB 2.0 power and data line
* Set-top box and digital TV
* Digital video interface (DVI)
* Notebook Computers
* SIM Ports
* 10/100 Ethernet Mechanical Characteristics
* Package: SOD-323
* Lead Finish: Lead Free
* UL Flammability Classification Rating 94V-0

📥 Download Datasheet

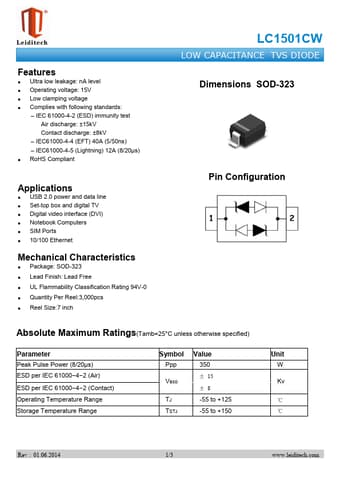

LC1501CW Datasheet Preview — Preview of LC1501CW PDF

Datasheet Details

Part number: LC1501CW
Manufacturer: Leiditech
File Size: 126.88 KB
Datasheet: LC1501CW-Leiditech.pdf
Description: LOW CAPACITANCE TVS DIODE
