LC1201CW LOW CAPACITANCE TVS DIODE

LC1201CW Description

.

LC1201CW Features

* Ultra low leakage: nA level
* Operating voltage: 12V
* Low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
* IEC61000-4-4 (EFT) 40A (5/50ns)
* IEC61000-4-5 (Lightning) 12A

LC1201CW Applications

* USB 2.0 power and data line
* Set-top box and digital TV
* Digital video interface (DVI)
* Notebook Computers
* SIM Ports
* 10/100 Ethernet Mechanical Characteristics
* Package: SOD-323
* Lead Finish: Lead Free
* UL Flammability Classification Rating 94V-0

📥 Download Datasheet

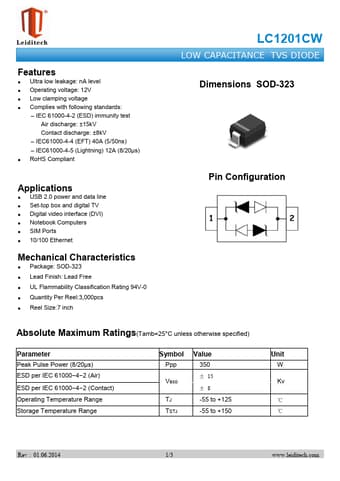

Preview of LC1201CW PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC1201CW
Manufacturer
Leiditech
File Size
125.20 KB
Datasheet
LC1201CW-Leiditech.pdf
Description
LOW CAPACITANCE TVS DIODE
