LC1201 - Low Power Consumption Regulator

Product Overview

LEADCHIP

📥 Download Datasheet

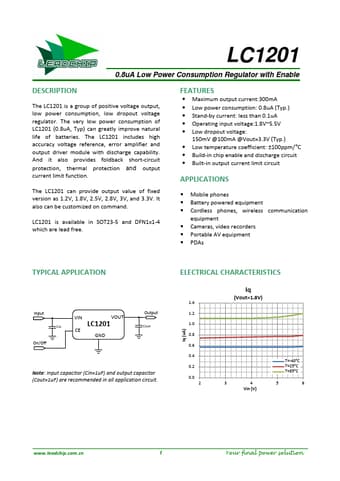

LC1201 Low Power Consumption Regulator by LEADCHIP - Datasheet Preview — Datasheet preview – LC1201

Datasheet Details

Part number	LC1201
Manufacturer	LEADCHIP
File Size	867.36 KB
Description	Low Power Consumption Regulator
Datasheet	LC1201 Datasheet
Additional preview pages of the LC1201 datasheet.

Product details

Description

The LC1201 is a group of positive voltage output, low power consumption, low dropout voltage regulator.

Features

Maximum output current:300mA.
Low power consumption: 0.8uA (Typ. ).
Stand-by current: less than 0.1uA.
Operating input voltage:1.8V~5.5V.
Low dropout voltage: 150mV @100mA @Vout=3.3V (Typ. ).
Low temperature coefficient: ±100ppm/C.
Build-in chip enable and discharge circuit.
Built-in output current limit circuit.
