LC1215 16V 500mA Low Consumption Linear Regulator

LC1215 Description

LC1215 16V 500mA Low Consumption Linear Regulator .
LC1215 series is a group of positive voltage output, low power consumption, low dropout voltage regulator.

LC1215 Features

* Low Power Consumption: 10uA(Typ. )
* Maximum Output Current: 500mA
* Small Dropout Voltage 600mV@300mA (Vout=3.3V) 1.2V@500mA (Vout=3.3V)
* Input Voltage Range: 3V~16V
* Output Voltage Range: 1.2V~5.0V (customized on command in 0.1V steps)
* Highly Accurate:±2%(±1% customize

LC1215 Applications

* Battery Powered equipment
* Power Management of MP3、PDA、DSC、 Mouse、PS2 Games
* Reference Voltage Source Regulation after Switching Power TYPICAL APPLICATION Input Cin On/Off VIN VOUT LC1215 EN GND Output Cout NOTE: Input capacitor (Cin=1uF) and Output capacitor (Cout=1uF) are r

📥 Download Datasheet

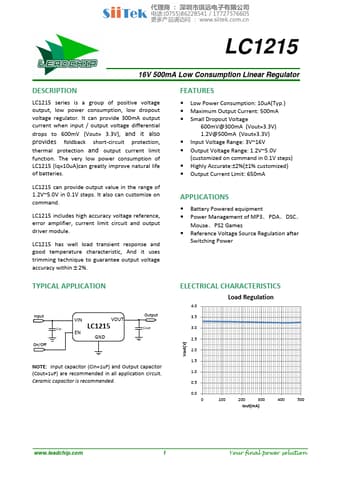

Preview of LC1215 PDF
