LC1213 - 250mA Low Consumption Linear Regulator

Product Overview

LEADCHIP

📥 Download Datasheet

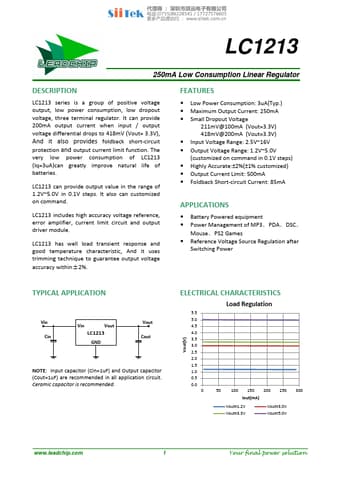

LC1213 250mA Low Consumption Linear Regulator by LEADCHIP - Datasheet Preview — Datasheet preview – LC1213

Datasheet Details

Part number	LC1213
Manufacturer	LEADCHIP
File Size	636.31 KB
Description	250mA Low Consumption Linear Regulator
Datasheet	LC1213 Datasheet
Additional preview pages of the LC1213 datasheet.

Product details

Description

LC1213 series is a group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator.

Features

Low Power Consumption: 3uA(Typ. ).
Maximum Output Current: 250mA.
Small Dropout Voltage 211mV@100mA (Vout=3.3V) 418mV@200mA (Vout=3.3V).
Input Voltage Range: 2.5V~16V.
Output Voltage Range: 1.2V~5.0V (customized on command in 0.1V steps).
Highly Accurate:±2%(±1% customized).
Output Current Limit: 500mA.
Foldback Short-circuit Current: 85mA.
