LC1210 - 200mA Low Consumption Linear Regulator

Product Overview

LEADCHIP

📥 Download Datasheet

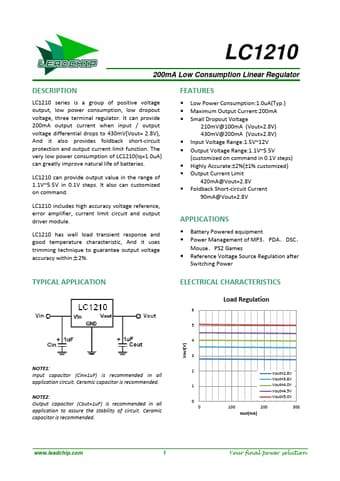

LC1210 200mA Low Consumption Linear Regulator by LEADCHIP - Datasheet Preview — Datasheet preview – LC1210

Datasheet Details

Part number	LC1210
Manufacturer	LEADCHIP
File Size	771.38 KB
Description	200mA Low Consumption Linear Regulator
Datasheet	LC1210 Datasheet
Additional preview pages of the LC1210 datasheet.

Product details

Description

LC1210 series is a group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator.

Features

Low Power Consumption:1.0uA(Typ. ).
Maximum Output Current:200mA.
Small Dropout Voltage 210mV@100mA (Vout=2.8V) 430mV@200mA (Vout=2.8V).
Input Voltage Range:1.5V~12V.
Output Voltage Range:1.1V~5.5V (customized on command in 0.1V steps).
Highly Accurate:±2%(±1% customized).
Output Current Limit 420mA@Vout=2.8V.
Foldback Short-circuit Current 90mA@Vout=2.8V.
