LC1208 300mA Low Consumption Linear Regulator

LC1208 Description

LC1208 REV1.10Revised JAN 2015 300mA Low Consumption Linear Regulator .
LC1208 series is a group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator.

LC1208 Features

* Low Power Consumption:1.0uA（Typ. ）
* Maximum Output Current:300mA
* Small Dropout Voltage 210mV@100mA (Vout=2.8V) 430mV@200mA (Vout=2.8V)
* Input Voltage Range:1.5V~6V
* Output Voltage Range:1.1V~5.5V (customized on command in 0.1V steps)
* Highly Accurate:±2% (±1% customize

LC1208 Applications

* Battery Powered equipment
* Power Management of MP3、PDA、DSC、 Mouse、PS2 Games
* Reference Voltage Source Regulation after Switching Power TYPICAL APPLICATION Note: Input capacitor (Cin=1uF) and Output capacitor (Cout=1uF) are recommended in all application circuit. Ceramic capacitor is

📥 Download Datasheet

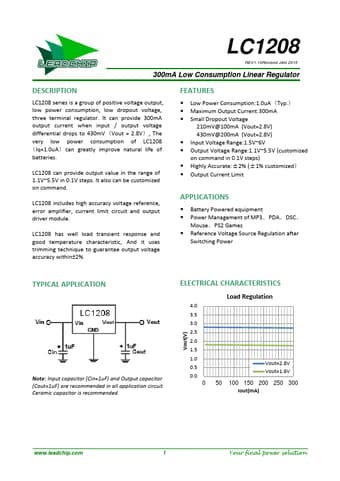

Preview of LC1208 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC1208
Manufacturer
LEADCHIP
File Size
887.48 KB
Datasheet
LC1208-LEADCHIP.pdf
Description
300mA Low Consumption Linear Regulator
