LC1218 - 250mA Low Consumption Linear Regulator

Product Overview

LEADCHIP

📥 Download Datasheet

LC1218 250mA Low Consumption Linear Regulator by LEADCHIP - Datasheet Preview — Datasheet preview – LC1218

Datasheet Details

Part number	LC1218
Manufacturer	LEADCHIP
File Size	412.43 KB
Description	250mA Low Consumption Linear Regulator
Datasheet	LC1218 Datasheet

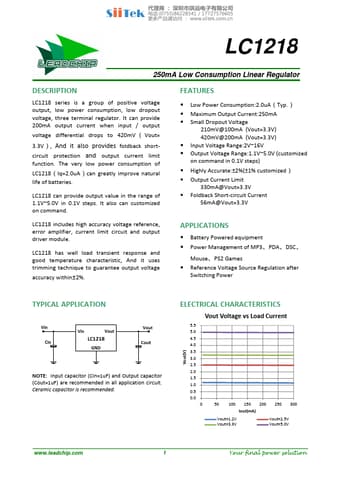

Additional preview pages of the LC1218 datasheet.

Product details

Description

LC1218 series is a group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator.

Features

Low Power Consumption:2.0uA（Typ. ）.
Maximum Output Current:250mA.
Small Dropout Voltage 210mV@100mA (Vout=3.3V) 420mV@200mA (Vout=3.3V).
Input Voltage Range:2V~16V.
Output Voltage Range:1.1V~5.0V (customized on command in 0.1V steps).
Highly Accurate:±2%(±1% customized）.
Output Current Limit 330mA@Vout=3.3V.
Foldback Short‐circuit Current 56mA@Vout=3.3V.
