LC500EUE-FFF1 WUXGA TFT LCD

1 NC No Connection 2 NC No Connection 3 NC No Connection 4 SDA SDA 5 SCL SCL 6 WP WP (Write Protection) 7 LVDS Select ‘H’ =JEIDA , ‘L’ or NC = VESA 8 NC No Connection 9 NC No Connection 10 NC No Connection 11 GND Ground 12 R1AN FIRST LVDS Receiver Signal (A-) 13 R1AP FIRST LVDS .

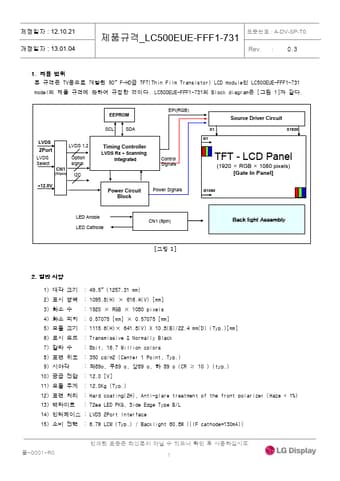

제정일자 : 12.10.21 개정일자 : 13.01.04 제품규격_LC500EUE-FFF1-731 표준번호 : A-DV-SP-T0 Rev. : 0.3 1. 적용 범위 본 규격은 TV용으로 개발된 50” F-HD급 TFT(Thin Film Transistor) LCD module인 LC500EUE-FFF1-731 model의 제품 규격에 관하여 규정한 것이다. LC500EUE-FFF1-731의 Block diagram은 [그림 1]과 같다. LVDS 2Port LVDS 1,2 LVDS Select CN1 (51pin) Option signal I2C +12.0V EEPROM SCL SDA Timing Controller LVDS Rx + Scanning Integrated EPI(RGB) Control Signals Power Circuit Block Power Signals S1 G1 Source Driver Circuit S1920 TFT - LCD Pa.
