LC5006

INTEGRATED HALF-BRIDGE DRIVER

LC5006 Features

* DBiCMOS technologies,low power dissipation and high output current Internal 5V LDO,CMOS and LSTTL logic (5V and 3.3V) compatible Cross conduction prevention logic Gate drive supply range from 10V to 15V Internal set deadtime High

LC5006 Datasheet (216.67 KB)

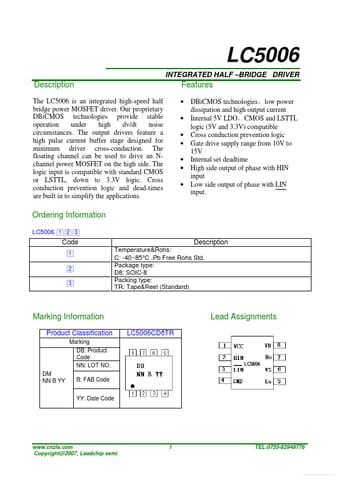

Preview of LC5006 PDF

Datasheet Details

Part number:

LC5006

Manufacturer:

Leadchip semi

File Size:

216.67 KB

Description:

Integrated half-bridge driver.
