LH350H01-FD01

TFT LCD

LH350H01-FD01 Features

* Active screen size Outline Dimension 3.54” diagonal 55.14 (H) x 82.84 (V) x 1.65 (T) Typ. 0.156(H) × 0.156(V) 320(H) X 480 (V) (RGB Stripe) 24-bits (R8, G8, B8) MIPI 2-lane 490mW (max. B/L on), 70mW (max. B/L off) 450nit(typ.) @20mA 7:30 o’clock (Non-inversion) COG 1Chip Ver. 0.1 May. 11, 2009 2

LH350H01-FD01 General Description

The LH350H01 is a Color Active Matrix Liquid Crystal Display with Light Emission Diode(LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is transflective type display operating in the normally white mode. This TFT-LCD has 3.54 inch diagonally measured acti.

LH350H01-FD01 Datasheet (1.78 MB)

Preview of LH350H01-FD01 PDF

Datasheet Details

Part number:

LH350H01-FD01

Manufacturer:

LG

File Size:

1.78 MB

Description:

Tft lcd.

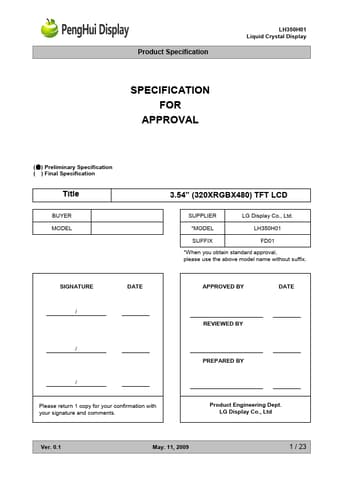

LH350H01 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( (
*) Preliminary Specification ) Final Specification Title.
