LH350H02-FD02 - TFT LCD

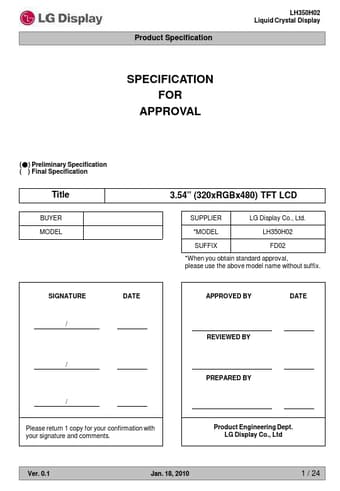

LH350H02-FD02 Datasheet Preview — Preview of LH350H02-FD02 PDF

Datasheet Details

Part number	LH350H02-FD02
Manufacturer	LG
File Size	1.09 MB
Description	TFT LCD
Datasheet	LH350H02-FD02-LG.pdf

LH350H02-FD02 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS OPTICAL CHARACTERISTICS MECHANICAL CHARACTERISTICS RELIABILITY TEST INTERNATIONAL STANDARDS PACKING PRECAUTIONS ITEM Page 1 2 3 4 5 6 13 18 20 21 22 23 Ver.0.1 Jan.18, 2010 2 / 24 LH350H02 Liquid Crystal Display Product Specification RECORD OF REVISIONS Revision No.0.1 Revision Date Jan.18, 2010 Page Description First Draft, Preliminary Specifications Ver.0.1 Jan.18, 2010 3 / 24 LH350H02 Liquid Crystal Display Product Specificati

Features

Item Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Interface Power Consumption Luminance Viewing Direction 3.54” diagonal 55.14(H) x 82.84(V) x 1.65(T) 0.156(H) x 0.156(V) 320(H) x 480(V) (RGB Stripe) 24-bits (R8, G8, B8) MIPI 2-lane 81MHz Typ. (D-PHY version 0.86, DSI version 1.01 r03, DCS version 1.01) 490mW (typ. B/L on), 60mW (typ. B/L off) 450nit(typ. ) @20mA 7:30 o’clock (Non-inversion) Specification Ver. 0.1 Jan. 18, 2010 4 / 24 LH350H02 Liquid Crystal Displ.
