LH350WS1-SD02

TFT LCD

LH350WS1-SD02 Features

* Item Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Interface Power Consumption Luminance Viewing Direction Specification 3.54” diagonal 54.85(H) x 82.93(V) x 1.423(T) 0.026(H) x 0.078(V) 640(H) x 960(V) (RGB Stripe) 24-bits (R8, G8, B8) MIPI 3-lane, 257MHz for high speed

LH350WS1-SD02 General Description

The LH35WS1 is a Color Active Matrix Liquid Crystal Display with Light Emission Diode(LED) backlight system. The matrix employs poly-Si Thin Film Transistor as the active element. It is transflective type display operating in the normally black mode. This TFT-LCD has 3.54 inch diagonally measured ac.

LH350WS1-SD02 Datasheet (806.71 KB)

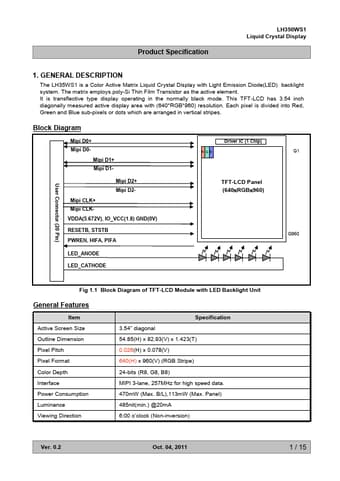

Preview of LH350WS1-SD02 PDF

Datasheet Details

Part number:

LH350WS1-SD02

Manufacturer:

ETC

File Size:

806.71 KB

Description:

Tft lcd.
