LM215WF3-SLC7 - Full HD TFT LCD

📥 Download Datasheet

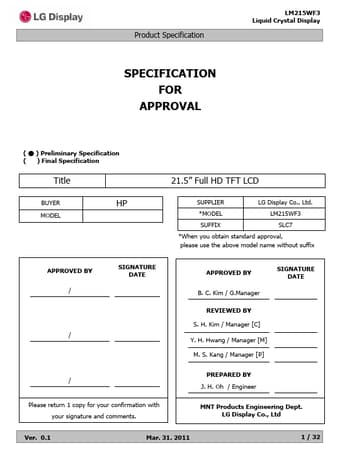

LM215WF3-SLC7 Datasheet Preview — Preview of LM215WF3-SLC7 PDF

Datasheet Details

Part number	LM215WF3-SLC7
Manufacturer	LG
File Size	384.70 KB
Description	Full HD TFT LCD
Datasheet	LM215WF3-SLC7-LG.pdf

LM215WF3-SLC7 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE VLCD Power Dip Condition OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS Contents ITEM Ver.0.1 Mar.31. 2011 LM215WF3 Liquid Crystal Display Page 1 2 3 4 5 6 6 9 14 15 16 17 18 19 25

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.1 CN2 (6PIN) Back light Assembly (LED) [ Figure 1 ] Block diagram 21.46 inches(545.22mm) diagonal 495.6(H) x 292.2(V) x 10.2(D) mm (Typ. ) 0.2475 mm x 0.2475mm 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement 16,7M colors (6bit + A-FRC) 250 cd/m2 ( Center 1 Point, Typ. ) View Angle Free (R/L 178(Typ. ), U/.
