LM215WF3-SLE1 Datasheet - LG

LM215WF3-SLE1 Full HD TFT LCD

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 3-7 VLCD Power Dip Condition 4 OPTICAL SPECIFICATIONS 5 MECHANICAL CHARACTERI.

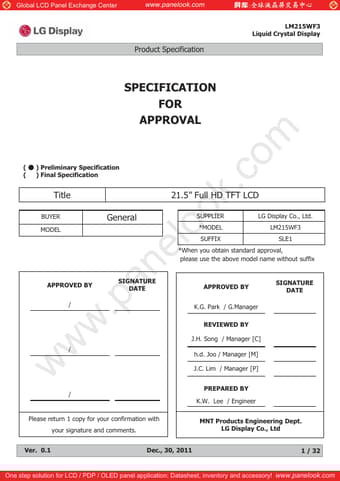

Global LCD Panel Exchange Center www.panelook.com Product Specification SPECIFICATION FOR APPROVAL LM215WF3 Liquid Crystal Display ( ̻ ) Preliminary Specification ( ̻ ) Final Specification Title BUYER MODEL General 21.5” Full HD TFT LCD SUPPLIER LG Display Co., Ltd. MODEL LM215WF3 SUFFIX SLE1 When you obtain standard approval, please use the above model name without suffix APPROVED BY / SIGNATURE DATE / APPROVED BY K.G. Park / G.Manager REVIEWED BY J.H. Song / Manager.

LM215WF3-SLE1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.1 CN2 (6PIN) Back light Assembly (LED) [ Figure 1 ] Block diagram 21.5 inches(54.61cm) diagonal 497.6(H) x 292.2
