LM270WQ1-SDDB - QHD TFT LCD

📥 Download Datasheet

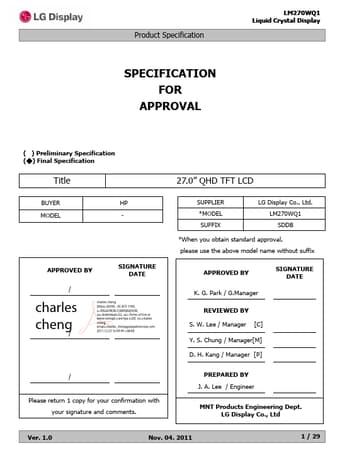

LM270WQ1-SDDB Datasheet Preview — Preview of LM270WQ1-SDDB PDF

Datasheet Details

Part number	LM270WQ1-SDDB
Manufacturer	LG
File Size	721.49 KB
Description	QHD TFT LCD
Datasheet	LM270WQ1-SDDB-LG.pdf

LM270WQ1-SDDB Product details

Description

ABSOLUTE MAXIMUM RATINGS ITEM ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment HDCP Ver. 1.0 27.0 inches(68.47cm) diagonal 630.0(H) x 376.13(V) x 21.8(D) mm(Typ. ) 0.2331 mm x 0.2331 mm 2560 horiz. By 1440 vert. Pixels RGB stripes arrangement 1.07 Billion colors, 8Bit with A-FRC 380 cd/m2 (Center 1Point, Typ. ) View Angle Free (R/L 178(Typ. ), U/D 178(Typ. )) Total 90.69 Watt (Max. ) (15.36 Watt @VLCD,.
