LP101WSA-TLN1 - LCD

📥 Download Datasheet

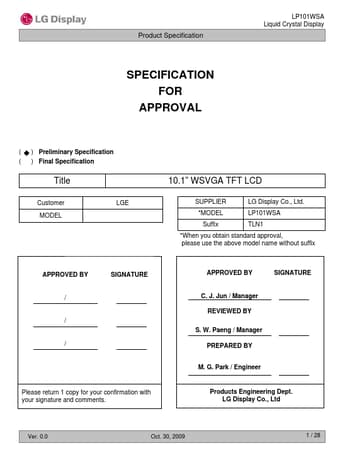

LP101WSA-TLN1 Datasheet Preview — Preview of LP101WSA-TLN1 PDF

Datasheet Details

Part number	LP101WSA-TLN1
Manufacturer	LG
File Size	1.11 MB
Description	LCD
Datasheet	LP101WSA-TLN1_LG.pdf

LP101WSA-TLN1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTION LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 0.0 10.1 inches diagonal 235.0(H) × 143.0(V) × 5.2(D,Max. ) [mm] 0.2175mmx0.2088mm 1024 horiz. By 600 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ.5 point) Total 2.6 Watt(Typ. ) @ LCM circuit 0.8 Watt(typ. ), B/L input 1.8 Watt(Typ. ) 190g (Max. ) Transmissive mode, normally white Glare treatment of the.
