LP141WX1-TLE2 - LCD

Product Overview

LP141WX1-TLE2 LCD by LG - Datasheet Preview — Datasheet preview – LP141WX1-TLE2

Datasheet Details

Part number	LP141WX1-TLE2
Manufacturer	LG
File Size	467.00 KB
Description	LCD
Datasheet	LP141WX1-TLE2 Datasheet

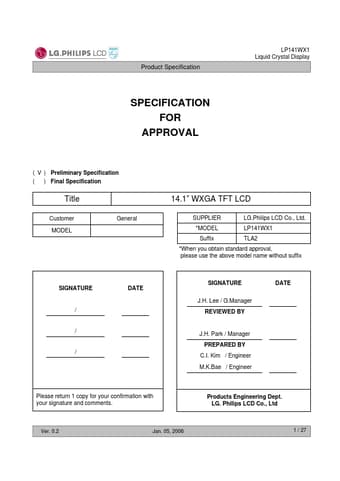

Additional preview pages of the LP141WX1-TLE2 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 14.1 inches diagonal 319.5 (H, typ) × 205.5(V, typ) × 5.3(D, max) [mm] 0.2373 mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ.5 point) Total 5.38 Watt(Typ. ) @ LCM circuit 1.28Watt(Typ. ), B/L input 4.1Watt(Typ. ) 400 g (Max. ), 390g(Typ. ) Transmissive mode, normally white Glar.
