LP141WX1-TLE3 - Liquid Crystal Display

Product Overview

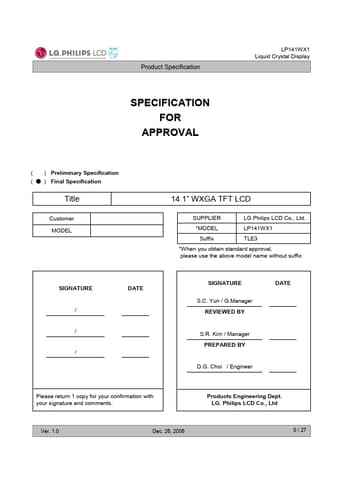

LP141WX1-TLE3 Liquid Crystal Display by LG - Datasheet Preview — Datasheet preview – LP141WX1-TLE3

Datasheet Details

Part number	LP141WX1-TLE3
Manufacturer	LG
File Size	713.46 KB
Description	Liquid Crystal Display
Datasheet	LP141WX1-TLE3 Datasheet
Additional preview pages of the LP141WX1-TLE3 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 6 8 9 9 10 11 12 16 20 21 21 21 22 22 22 23 25 27 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data (E

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 1.0 14.1 inches diagonal 320.0 (H) × 206.0(V) × 5.5(D) [mm] (Max. ) 0.2373 mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 220 cd/m2(Typ.5 point) Total 5.42 Watt(Typ. ) @ LCM circuit 1.32 Watt(Typ. ), B/L input 4.1 Watt(Typ. ) 435 g (Max. ), 425g(Typ. ) W/O Inverter & Down Bracket Transmi.
