LP141XB-C1C4 - Liquid Crystal Display

Product Overview

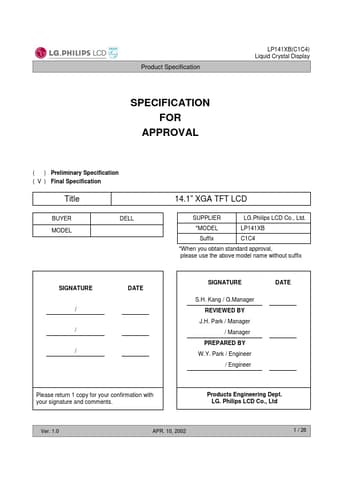

LP141XB-C1C4 Liquid Crystal Display by LG - Datasheet Preview — Datasheet preview – LP141XB-C1C4

Datasheet Details

Part number	LP141XB-C1C4
Manufacturer	LG
File Size	522.90 KB
Description	Liquid Crystal Display
Datasheet	LP141XB-C1C4 Datasheet
Additional preview pages of the LP141XB-C1C4 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Inspection Criteria 21 21 22 22 23 25 Ver.1.0 APR.10, 2002 2 / 26 Da

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 14.1 inches(35.814cm) diagonal 298.5(H) × 226.5(V) × 5.7(D) mm (Typ. ) 0.279 mm × 0.279 mm 1024 horiz. By 768 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 170 cd/m2(Typ. ) Total 5.96 Watt(Typ. ) @ LCM circuit 1.06Watt(Typ. ), B/L input 4.9Watt(Typ. ) 490g (Typ. ), 505g(Max. ) w/ inverter and bracket Transmissive mode, normally white Har.
