LP201WE1-F11 - WSXGA+ TFT LCD

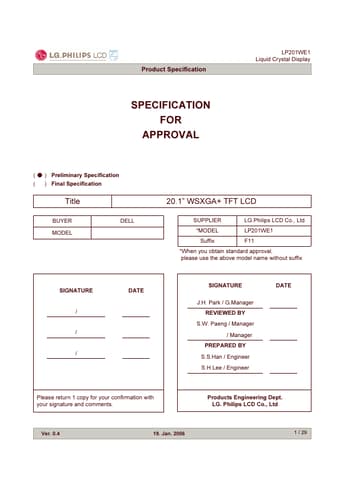

LP201WE1-F11 Datasheet Preview — Preview of LP201WE1-F11 PDF

Datasheet Details

Part number	LP201WE1-F11
Manufacturer	LG
File Size	0.96 MB
Description	WSXGA+ TFT LCD
Datasheet	LP201WE1-F11-LG

LP201WE1-F11 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS ITEM Page 1 2 3 4 5 6 8 10 10 11 12 13 18 22 23 23 24 24 25 27 APPENDIX.Enhanced Extended Display Identification Data Ver.0.4 19. Jan.2006 2

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.4 20.1 inches(511.133mm) diagonal (Aspect ratio 16:10) 453.5(H) x 294.5 (V) x 11.5(D) mm (Typ. ) 0.258mm x 0.258mm 1680 horiz. By 1050 vert. Pixels RGB strip arrangement 8bit, 16,7 M colors 300 cd/m2 (Center 5 point, Typ. ) Viewing Angle Free ( R/L 176(Typ. ), U/D 176(Typ)) Total 15.0Watt(Typ. ) (4.2Watt@VLCD(Mosaic).
