LP2001 Surface Mount 10Base-T Interface Modules

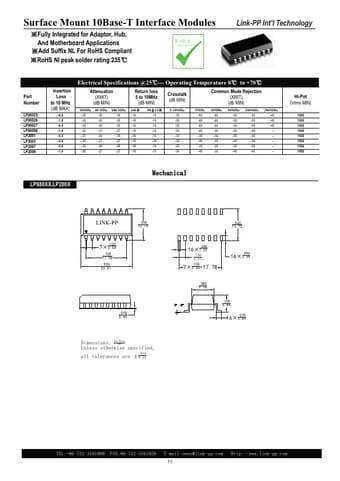

Surface Mount 10Base-T Interface Modules Fully Integrated for Adaptor, Hub, And Motherboard Applications Add Suffix NL For RoHS Compliant RoHS Nl peak solder rating 235 Link-PP Int’l Technology Part Number LP88025 LP88026 LP88027 LP88056 LP2001 LP2003 LP2007 LP2009 Insertion Loss to 10 MHz (dB MAX) -6.0 -1.0 -6.5 -1.0 -5.5 -6.0 -5.0 -1.0 Electrical Specifications @25 - Operating Temperature 0 to +70 Attenuation (XMIT) (dB MIN) 30MHz -35 -30 -35 -30 .

LP2001-Link-PP.pdf

LP2001 Datasheet Preview — This datasheet PDF includes multiple part numbers: LP2001, LP2001-Link. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LP2001, LP2001-Link

Manufacturer:

Link-PP

File Size:

142.26 KB

Description:

Surface mount 10base-t interface modules.

Note:

This datasheet PDF includes multiple part numbers: LP2001, LP2001-Link.
Please refer to the document for exact specifications by model.
