DB151S - Silicon Bridge Rectifiers

Name: DB151S
SKU: DB151S-1053098

LGE

The DB151S by LGE is a Silicon Bridge Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	DB151S
Manufacturer	LGE
File Size	148.88 KB
Description	Silicon Bridge Rectifiers
Datasheet	DB151S-LGE.pdf

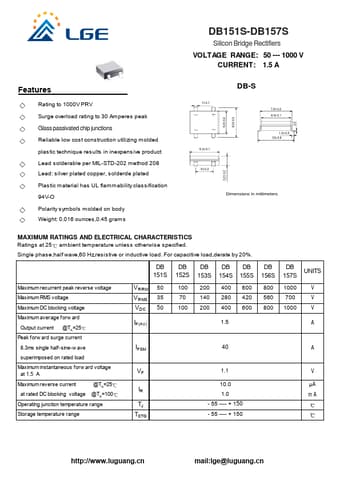

Additional preview pages of the DB151S datasheet.

Rating to 1000V PRV Surge overload rating to 30 Amperes peak Glass passivated chip junctions Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Lead: silver plated copper, solderde plated Plastic material has UL flammability classification 94V-O Polarity symbols molded on body Weight: 0.016 ounces,0.45 grams 1± 0.1 8.3± 0.1 5± 0.2 6.3± 0.2 8.3± 0.3 DB-S 7.9± 0.2 6.4± 0.1 1.2± 0.3 10± 0.6 3.2± 0.2 Dimens.
