DB157S, DB151S - Silicon Bridge Rectifiers

Name: DB157S
SKU: DB157S-1053104

LGE

The DB157S by LGE is a Silicon Bridge Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	DB157S, DB151S
Manufacturer	LGE
File Size	148.88 KB
Description	Silicon Bridge Rectifiers
Datasheet	DB151S-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: DB157S, DB151S. Please refer to the document for exact specifications by model.

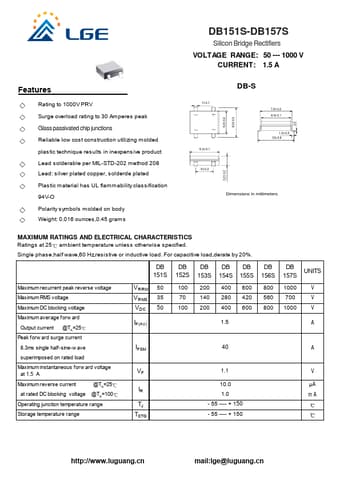

Additional preview pages of the DB157S datasheet.

Rating to 1000V PRV Surge overload rating to 30 Amperes peak Glass passivated chip junctions Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Lead: silver plated copper, solderde plated Plastic material has UL flammability classification 94V-O Polarity symbols molded on body Weight: 0.016 ounces,0.45 grams 1± 0.1 8.3± 0.1 5± 0.2 6.3± 0.2 8.3± 0.3 DB-S 7.9± 0.2 6.4± 0.1 1.2± 0.3 10± 0.6 3.2± 0.2 Dimens.
