RGP20B, RGP20A Datasheet - LGE

RGP20B Fast Recovery Rectifiers

RGP20B Features

* Low cost Diffused junction Low leakage Low forward voltage drop High current capability Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 Mechanical Data Case:JEDEC DO-15,molded plastic Terminals: Axial lead ,solderable per MIL- STD

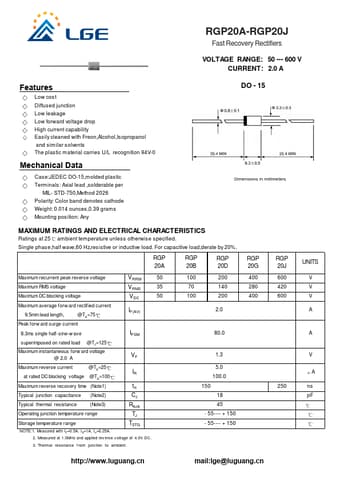

RGP20A-LGE.pdf

RGP20B Datasheet Preview — This datasheet PDF includes multiple part numbers: RGP20B, RGP20A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RGP20B, RGP20A

Manufacturer:

LGE

File Size:

163.68 KB

Description:

Fast recovery rectifiers.

Note:

This datasheet PDF includes multiple part numbers: RGP20B, RGP20A.
Please refer to the document for exact specifications by model.
