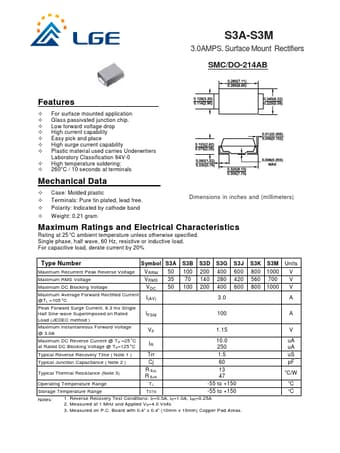

For surface mounted application Glass passivated junction chip. Low forward voltage drop High current capability Easy pick and place High surge current capability Plastic material used carries Underwriters Laboratory Classification 94V-0 High temperature soldering: 260oC / 10 seconds at terminals
Mechanical Data
Case: Molded plastic Terminals: Pure tin plated, lead free. Polarity: Indicated by cathode band Weight: 0.21 gram
Dimensions in inches and (millimeters)
Maximum Ratings and Electric.
