SUF4007, SUF4001 Surface Mount Rectifiers

LGE

Description

SUF4001-SUF4007 Surface Mount Rectifiers REVERSE VOLTAGE: 50 - 1000 V CURRENT: 1.0 A .

📥 Download Datasheet

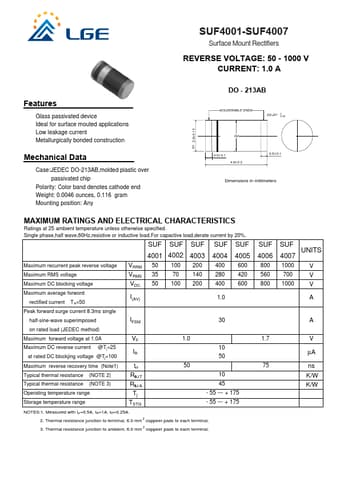

SUF4007 Datasheet Preview — This datasheet PDF includes multiple part numbers: SUF4007, SUF4001. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SUF4007, SUF4001
Manufacturer: LGE
File Size: 208.44 KB
Datasheet: SUF4001-LGE.pdf
Description: Surface Mount Rectifiers
Note: This datasheet PDF includes multiple part numbers: SUF4007, SUF4001.
Please refer to the document for exact specifications by model.

Applications

* Low leakage current Metallurgically bonded construction Mechanical Data Case:JEDEC DO-213AB,molded plastic over passivated chip Polarity: Color band denotes cathode end Weight: 0.0046 ounces, 0.116 gram Mounting position: Any D1 2.6± 0.15 DO - 213AB SOLDERABLE ENDS D2=D1 0 0.20 D2 0.5± 0.1 4.
