LM2601616AR - 2.6 inch 16x16 Dot Matrix LED Display

Product Overview

LIGHTKEY

Part number	LM2601616AR
Manufacturer	LIGHTKEY
File Size	194.00 KB
Description	2.6 inch 16x16 Dot Matrix LED Display
Datasheet	LM2601616AR Datasheet
Note	This datasheet PDF includes multiple part numbers: LM2601616AR, LM2601616A. Please refer to the document for exact specifications by model.

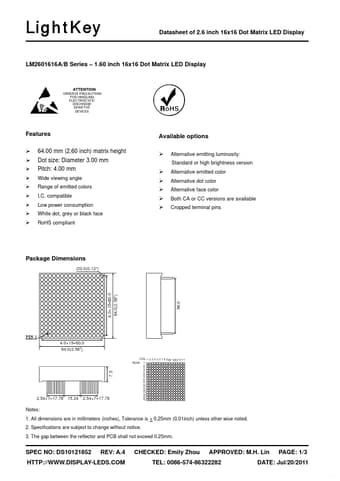

Additional preview pages of the LM2601616AR datasheet.

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative dot color Alternative face color Both CA or CC versions are available Cropped terminal pins 64.00 mm (2.60 inch) matrix height Dot size: Diameter 3.00 mm Pitch: 4.00 mm Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White dot, grey or black face RoHS compliant Package Dimensions Ø3.0(0.12 ) 4. 0× 15= 60.0.
