LM26001B - 1.5A Switching Regulator

Datasheet Summary

Description

The LM26001B is a switching regulator designed for the high efficiency requirements of applications with stand-by modes.

Features

  • 1.
  • 2 High Efficiency Sleep Mode.
  • 40 µA Typical Iq in Sleep Mode.
  • 10 µA Typical Iq in Shutdown Mode.
  • 3.0V Minimum Input Voltage.
  • 4.0V to 18V Continuous Input Range.
  • 2.0% Reference Accuracy.
  • Cycle-by-Cycle Current Limit.
  • Adjustable Frequency (150 kHz to 500 kHz).
  • Synchronizable to an External Clock.
  • Power Good Flag.
  • Forced PWM Function.
  • Adjustable Soft-Start.
  • HTSSOP-16 Exposed Pad Pa.

📥 Download Datasheet

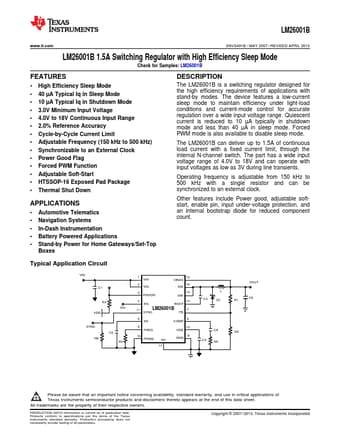

Datasheet preview – LM26001B

Datasheet Details

Part number LM26001B
Manufacturer Texas Instruments
File Size 1.16 MB
Description 1.5A Switching Regulator
Datasheet download datasheet LM26001B Datasheet
