LM26003 - 3-A Switching Regulator

Datasheet Summary

Description

The LM26003 is a switching regulator designed for the high-efficiency requirements of applications with standby modes.

Features

  • 1 LM26003-Q1 is an Automotive-Grade Product That is AEC-Q100 Grade 1 Qualified (.
  • 40°C to +125°C Operating Junction Temperature).
  • High-Efficiency Sleep Mode.
  • 40-µA Typical Iq in Sleep Mode.
  • 10.8-µA Typical Iq in Shutdown Mode.
  • 3.0-V Minimum Input Voltage.
  • 4.0-V to 38-V Continuous Input Range.
  • 1.5% Reference Accuracy.
  • Cycle-by-Cycle Current Limit.
  • Adjustable Frequency (150 kHz to 500 kHz).
  • Synchroniza.

📥 Download Datasheet

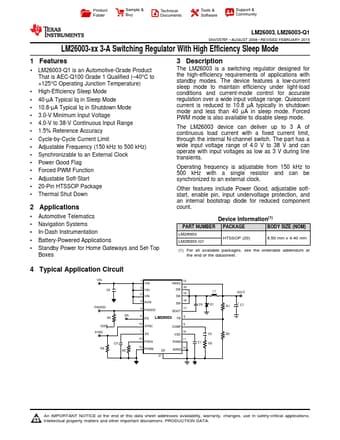

Datasheet preview – LM26003

Datasheet Details

Part number LM26003
Manufacturer Texas Instruments
File Size 1.24 MB
Description 3-A Switching Regulator
Datasheet download datasheet LM26003 Datasheet
Additional preview pages of the LM26003 datasheet.
