DF15005M

GLASS PASSIVATED BRIDGE RECTIFIERS

DF15005M Features

* Rating to 1000V PRV Ideal for printed circuit board Low forward voltage drop, high current capability. Reliable low cost construction utilizing molded plastic technique results in inexpensive product The plastic material has UL flammability classification 94V-0 UL recognized file # E95060 MECHANICAL

DF15005M Datasheet (82.13 KB)

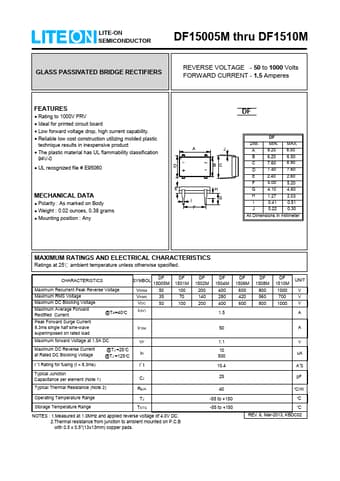

Preview of DF15005M PDF

Datasheet Details

Part number:

DF15005M

Manufacturer:

LITE-ON

File Size:

82.13 KB

Description:

Glass passivated bridge rectifiers.
LITE-ON SEMICONDUCTOR DF15005M thru DF1510M GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 1.5 Amperes FE.
