LSP5503L 3A 23V Synchronous Buck Converter

The LSP5503L is a monolithic synchronous buck regulator. The device integrates 90 mΩ MOSFETS that provide 3A continuous load current over a wide operating input voltage of 4.5V to 23V. Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start pr.

LSP5503L Features

* 3A Output Current

* Wide 4.5V to 23V Operating Input Range

* Fixed 340KHZ Frequency

* Integrated Power MOSFET Switches

* Output Adjustable from 0.925V to 0.8Vin

* Up to 93% Efficiency

* Programmable Soft-Start

* Stable with Low ESR Ce

LSP5503L-LITE-ON.pdf

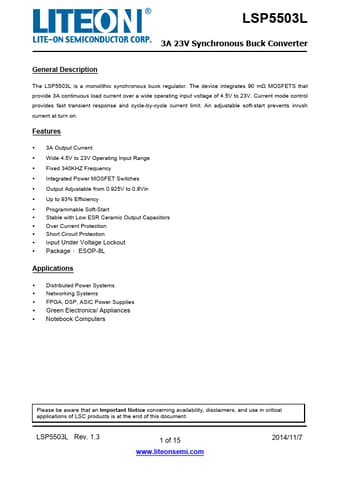

LSP5503L Datasheet Preview — This datasheet PDF includes multiple part numbers: LSP5503L, LSP5503L-LITE. Please refer to the document for exact specifications by model.
