LSP5523 - 3A 27V Synchronous Buck Converter

This page provides the datasheet information for the LSP5523, a member of the LSP5523-Lite 3A 27V Synchronous Buck Converter family.

Datasheet Summary

Description

The LSP5523 is a monolithic synchronous buck regulator.

The device integrates 90 mΩ MOSFETS that provide 3A continuous load current over a wide operating input voltage of 4.5V to 27V.

Current mode control provides fast transient response and cycle-by-cycle current limit.

Features

  • 3A Output Current.
  • Wide 4.5V to 27V Operating Input Range.
  • Fixed 340KHZ Frequency.
  • Integrated Power MOSFET Switches.
  • Output Adjustable from 0.925V to 0.8Vin.
  • Up to 93% Efficiency.
  • Programmable Soft-Start.
  • Stable with Low ESR Ceramic Output Capacitors.
  • Cycle by Cycle Over Current Protection.
  • Short Circuit Protection.
  • Input Under Voltage Lockout.
  • Package： ESOP-8L.

📥 Download Datasheet

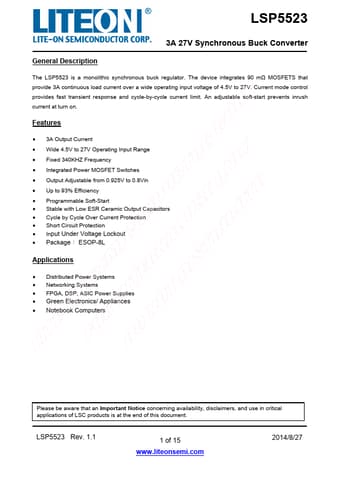

Datasheet preview – LSP5523

Datasheet Details

Part number LSP5523
Manufacturer LITEON
File Size 724.23 KB
Description 3A 27V Synchronous Buck Converter
Datasheet download datasheet LSP5523 Datasheet
