LSP5526, LSP5526-Lite - 2A 27V Synchronous Buck Converter

LSP5526 Description

LSP5526 2A 23V Synchronous Buck Converter General .
The LSP5526 is a monolithic synchronous buck regulator.

LSP5526 Features

* 2A Output Current Wide 4.5V to 23V Operating Input Range Integrated Power MOSFET Switches Output Adjustable from 0.925V to 18Vin Up to 96% Efficiency Programmable Soft-Start Stable with Low ESR Ceramic Output Capacitors Fixed 340KHZ F

LSP5526 Applications

* Distributed Power Systems Networking Systems FPGA, DSP, ASIC Power Supplies Green Electronics/ Appliances Notebook Computers Please be aware that an Important Notice concerning availability, disclaimers, and use in critical applications of LSC products is at the end o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LSP5526, LSP5526-Lite. Please refer to the document for exact specifications by model.

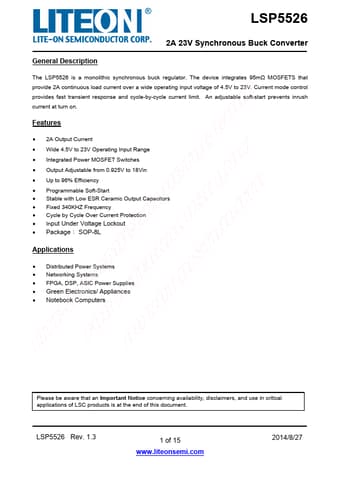

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LSP5526, LSP5526-Lite
Manufacturer
Lite-On
File Size
798.61 KB
Datasheet
LSP5526-Lite-On.pdf
Description
2A 27V Synchronous Buck Converter
Note
This datasheet PDF includes multiple part numbers: LSP5526, LSP5526-Lite.
Please refer to the document for exact specifications by model.
