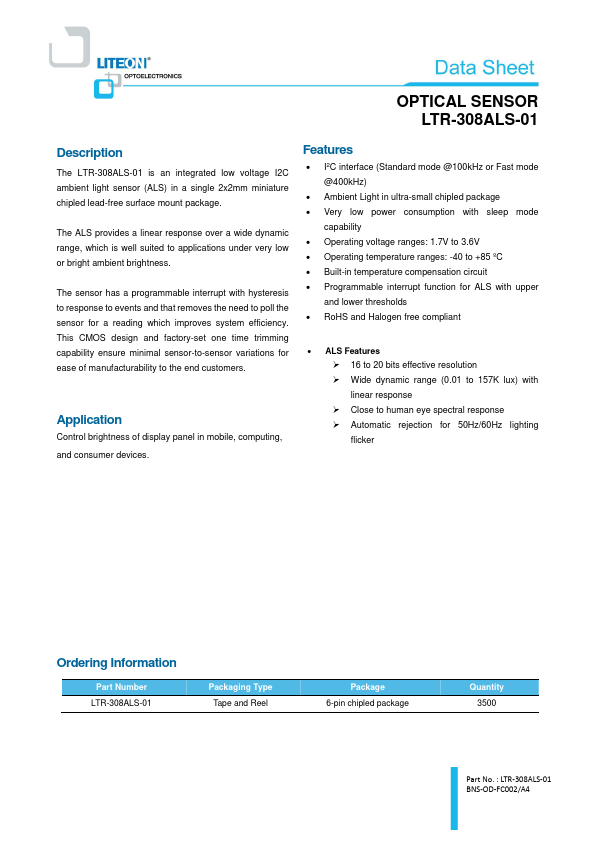

LTR-308ALS-01 Datasheet Preview — Preview of LTR-308ALS-01 PDF

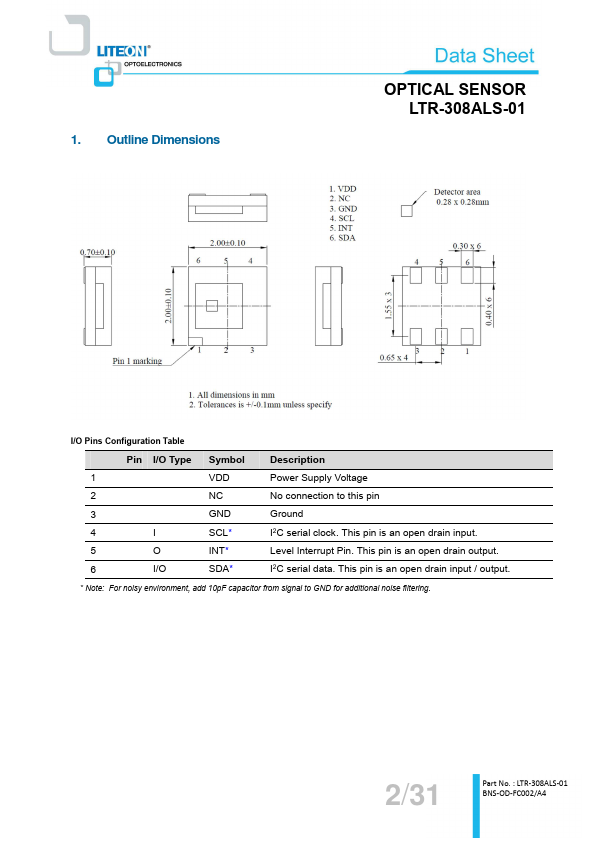

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTR-308ALS-01
Manufacturer	LITEON
File Size	952.07 KB
Description	Optical Sensor
Datasheet	LTR-308ALS-01-LITEON.pdf

LTR-308ALS-01 Product details

Description

The LTR-308ALS-01 is an integrated low voltage I2C ambient light sensor (ALS) in a single 2x2mm miniature chipled lead-free surface mount package.

Features

I2C interface (Standard mode @100kHz or Fast mode @400kHz).
Ambient Light in ultra-small chipled package.
Very low power consumption with sleep mode capability.
Operating voltage ranges: 1.7V to 3.6V.
Operating temperature ranges: -40 to +85 ºC.
Built-in temperature compensation circuit.
Programmable interrupt function for ALS with upper and lower thresholds.
RoHS and Halogen free compliant.
ALS Features.
16 t.
