LTR-329ALS-01 - Optical Sensor

LITE-ON

📥 Download Datasheet

LTR-329ALS-01 Datasheet Preview — Preview of LTR-329ALS-01 PDF

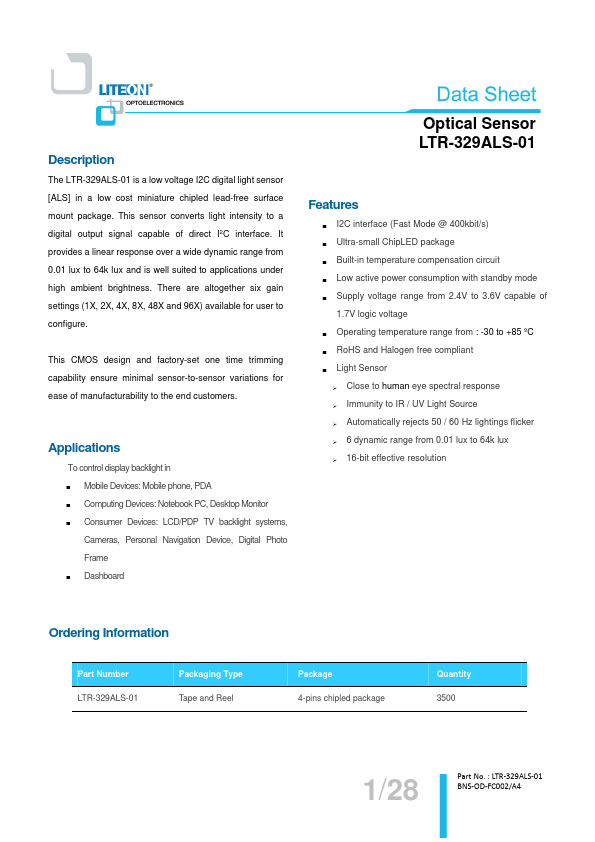

datasheet Preview Page 2

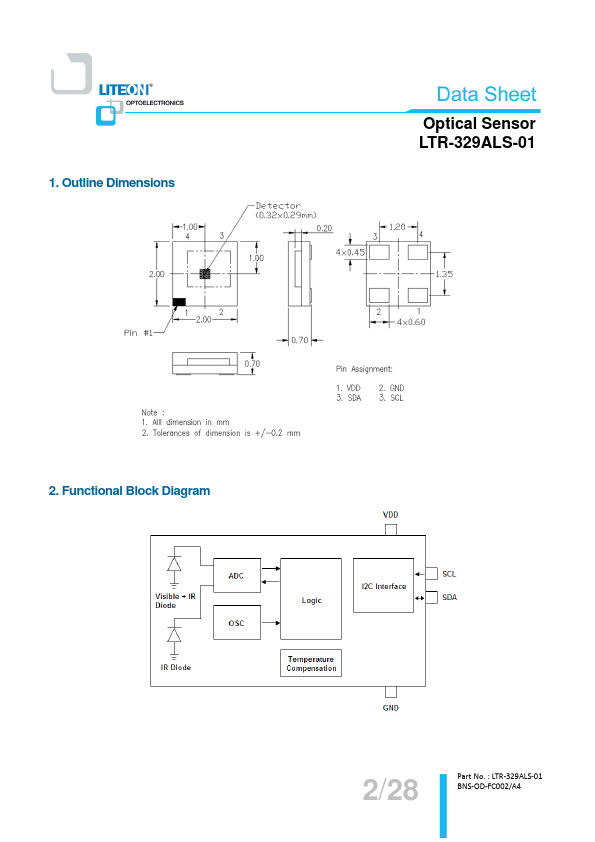

datasheet Preview Page 3

Datasheet Details

Part number	LTR-329ALS-01
Manufacturer	LITEON
File Size	933.01 KB
Description	Optical Sensor
Datasheet	LTR-329ALS-01-LITEON.pdf

LTR-329ALS-01 Product details

Description

The LTR-329ALS-01 is a low voltage I2C digital light sensor [ALS] in a low cost miniature chipled lead-free surface mount package.

Features

I2C interface (Fast Mode @ 400kbit/s).
Ultra-small ChipLED package.
Built-in temperature compensation circuit.
Low active power consumption with standby mode.
Supply voltage range from 2.4V to 3.6V capable of 1.7V logic voltage.
Operating temperature range from : -30 to +85 ºC.
RoHS and Halogen free compliant.
Light Sensor.
Close to human eye spectral response.
Immunity to IR / UV Light Source.
Automatically rejects 50 / 60 Hz lightings fli.
