LTR-4206 - Infrared

Datasheet Summary

Description

LTR-4206 series is a high radiant sensitivity silicon NPN phototransistor.

It is molded in water clear T1 package.

It has wide range of spectral detecting wavelength range and has peak spectral sensitivity at 900nm.

Features

Lead (Pb) free product and RoHS compliant.
Wide range of collector current.
Popular T-1 Ø3mm diameter.
Water clear lens 1.2.

LITEON

📥 Download Datasheet

Datasheet Details

Part number	LTR-4206
Manufacturer	LITEON
File Size	311.61 KB
Description	Infrared
Datasheet	LTR-4206 Datasheet

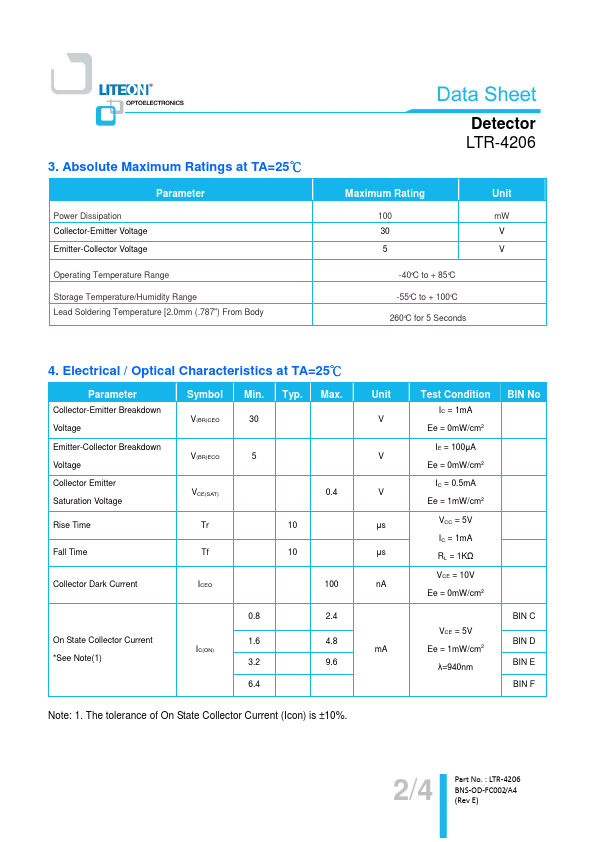

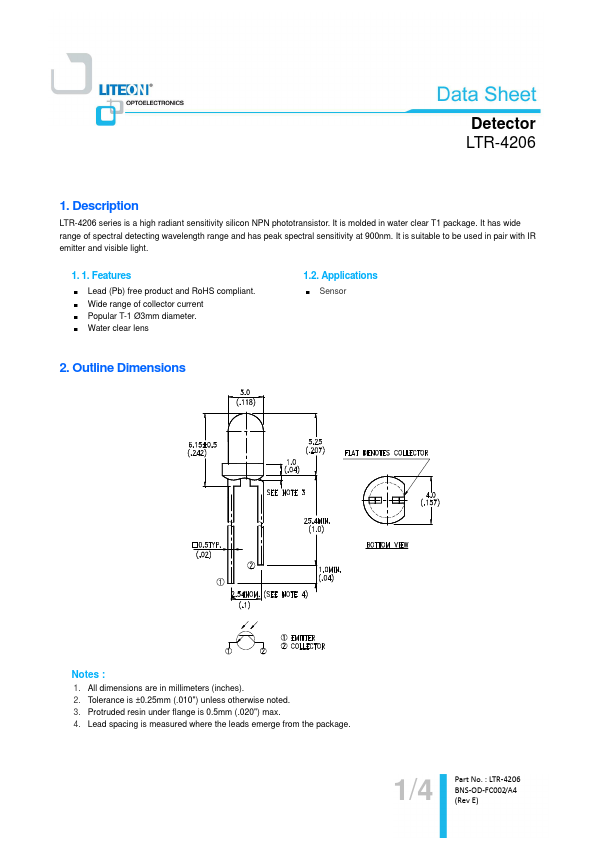

Additional preview pages of the LTR-4206 datasheet.

📁 Similar Datasheet

LTR-301 - IR Emitter/Detector (Lite-On)
LTR-303ALS-01 - Optical Sensor (LITE-ON)
LTR-308ALS-01 - Optical Sensor (LITE-ON)
LTR-309 - IR Emitter/Detector (LITE-ON)
LTR-323DB - IR Emitter and Detector (LITE-ON)
LTR-329ALS-01 - Optical Sensor (LITE-ON)
LTR-390UV-01 - Optical Sensor (LITE-ON)
LTR-507ALS-01 - Optical Sensor (Lite-On)
LTR-507ALS-WA - Optical Sensor (Lite-On)
LTR-516AB - IR Emitter/Detector (LITE-ON)

Other Datasheets by LITEON

LTR-4206E - Infrared
LTR-311ALS-02 - Optical Sensor
LTR-3208E - IR Emitter and Detector
LTR-568ALS-01 - Optical Sensor
LTR-578ALS-02 - Optical Sensor
LTR-578ALS-039 - Optical Sensor
LTR-778ALS-BE - Optical Sensor
LTR-S320-TB-L - Detector

Full PDF Text Transcription

Click to expand full text

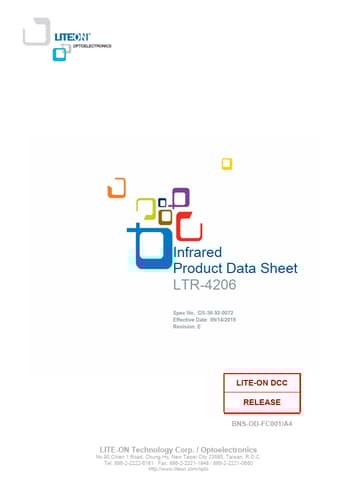

Infrared Product Data Sheet LTR-4206 Spec No. :DS-50-92-0072 Effective Date: 09/14/2019 Revision: E LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Detector LTR-4206 1. Description LTR-4206 series is a high radiant sensitivity silicon NPN phototransistor. It is molded in water clear T1 package. It has wide range of spectral detecting wavelength range and has peak spectral sensitivity at 900nm. It is suitable to be used in pair with IR emitter and visible light. 1. 1. Features  Lead (Pb) free product and RoHS compliant.  Wide range of collector current  Popular T-1 Ø3mm diameter.  Water clear lens 1.
