MBRF20100CTL, MBRF20100CTL-LITE - SCHOTTKY BARRIER RECTIFIERS

MBRF20100CTL Description

SCHOTTKY BARRIER RECTIFIERS MBRF20100CTL REVERSE VOLTAGE * 100 Volts FORWARD CURRENT * 20 Amperes .

MBRF20100CTL Features

* Metal of silicon rectifier, majority carrier conduction
* Guard ring for transient protection
* Low power loss, high efficiency
* High surge&current capability, low VF
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection

MBRF20100CTL Applications

* MECHANICAL DATA
* Case: ITO-220AB molded plastic
* Plastic package has UL flammability classification 94V-0
* Terminals: Matte Tin, solderable per MIL-STD-202 Method 208
* Moisture sensitivity: level 1 per J-STD-020D
* Lead Free Finish, RoHS Compliant

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF20100CTL, MBRF20100CTL-LITE. Please refer to the document for exact specifications by model.

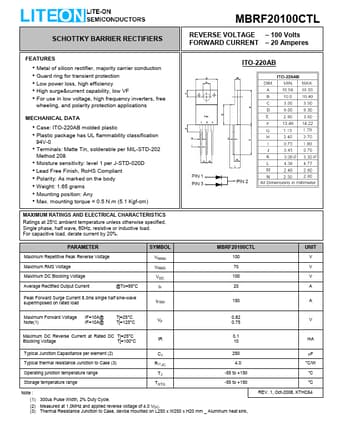

datasheet Preview Page 2

Datasheet Details

Part number
MBRF20100CTL, MBRF20100CTL-LITE
Manufacturer
LITE-ON
File Size
124.08 KB
Datasheet
MBRF20100CTL-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBRF20100CTL, MBRF20100CTL-LITE.
Please refer to the document for exact specifications by model.
