MBRF2045CT, MBRF2030CT-LITE, SCHOTTKY BARRIER RECTIFIERS

LITE-ON SEMICONDUCTOR MBRF2030CT thru 2045CT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 45 Volts FORWARD CURRENT - 20 Amperes .

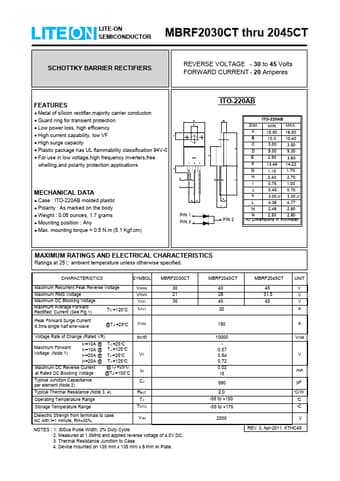

datasheet Preview Page 1 from Datasheet4u.com

MBRF2030CT-LITE-ON.pdf

MBRF2045CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRF2045CT, MBRF2030CT-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBRF2045CT, MBRF2030CT-LITE

Manufacturer:

LITE-ON

File Size:

83.27 KB

Description:

SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: MBRF2045CT, MBRF2030CT-LITE.
Please refer to the document for exact specifications by model.

Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

Applications

* MECHANICAL DATA Case : ITO-220AB molded plastic Polarity : As marked on the body Weight : 0.06 ounces, 1.7 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) B K PIN 1 23 G I HH PIN 1 PIN 3 EC D FA ITO-220AB M J N L PIN 2 ITO-220AB DIM. MIN. MAX. A 15.50 16.50 B 10.0 10.4
