MBRF2030CT, MBRF2030CT-LITE - SCHOTTKY BARRIER RECTIFIERS

MBRF2030CT Description

LITE-ON SEMICONDUCTOR MBRF2030CT thru 2045CT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 45 Volts FORWARD CURRENT - 20 Amperes .

MBRF2030CT Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

MBRF2030CT Applications

* MECHANICAL DATA Case : ITO-220AB molded plastic Polarity : As marked on the body Weight : 0.06 ounces, 1.7 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) B K PIN 1 23 G I HH PIN 1 PIN 3 EC D FA ITO-220AB M J N L PIN 2 ITO-220AB DIM. MIN. MAX. A 15.50 16.50 B 10.0 10.4

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF2030CT, MBRF2030CT-LITE. Please refer to the document for exact specifications by model.

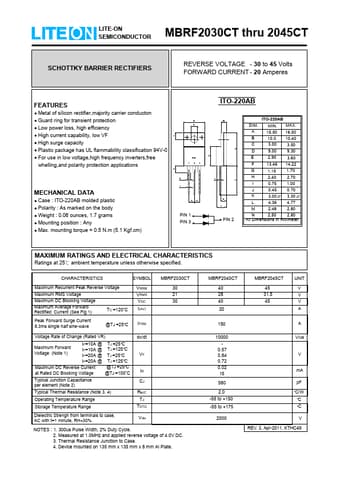

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF2030CT, MBRF2030CT-LITE
Manufacturer
LITE-ON
File Size
83.27 KB
Datasheet
MBRF2030CT-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBRF2030CT, MBRF2030CT-LITE.
Please refer to the document for exact specifications by model.
