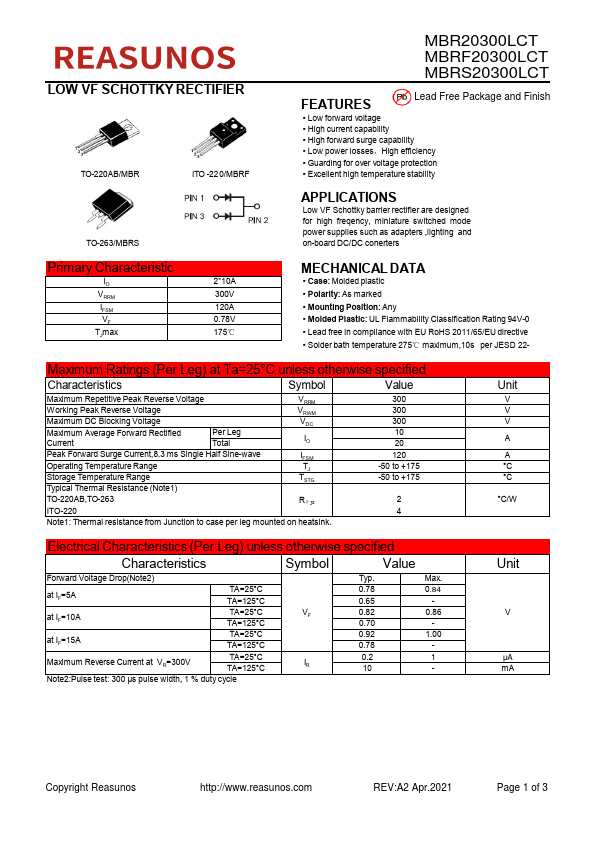

MBRF20300LCT, MBR20300LCT LOW VF SCHOTTKY RECTIFIER

MBRF20300LCT Description

LOW VF SCHOTTKY RECTIFIER TO-220AB/MBR ITO -22 0/MBRF MBR20300LCT MBRF20300LCT MBRS20300LCT .

MBRF20300LCT Features

* Lead Free Package and Finish
* Low forward voltage
* High current capability
* High forward surge capability
* Low power losses，High efficiency
* Guarding for over voltage protection
* Excellent high temperature stability TO-263/MBRS APPLICATI

MBRF20300LCT Applications

* Low VF Schottky barrier rectifier are designed for high freqency, miniature switched mode power supplies such as adapters ,lighting and on-board DC/DC conerters Primary Characteristic IO VRRM IFSM VF TJmax 2
* 10A 300V 120A 0.78V 175℃ MECHANICAL DATA
* Case: Molded plastic
* Pol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF20300LCT, MBR20300LCT. Please refer to the document for exact specifications by model.

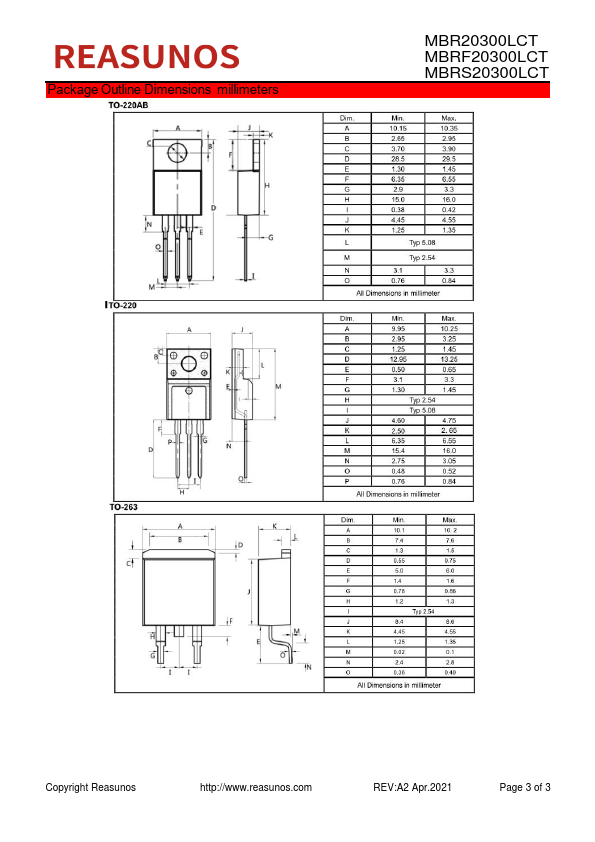

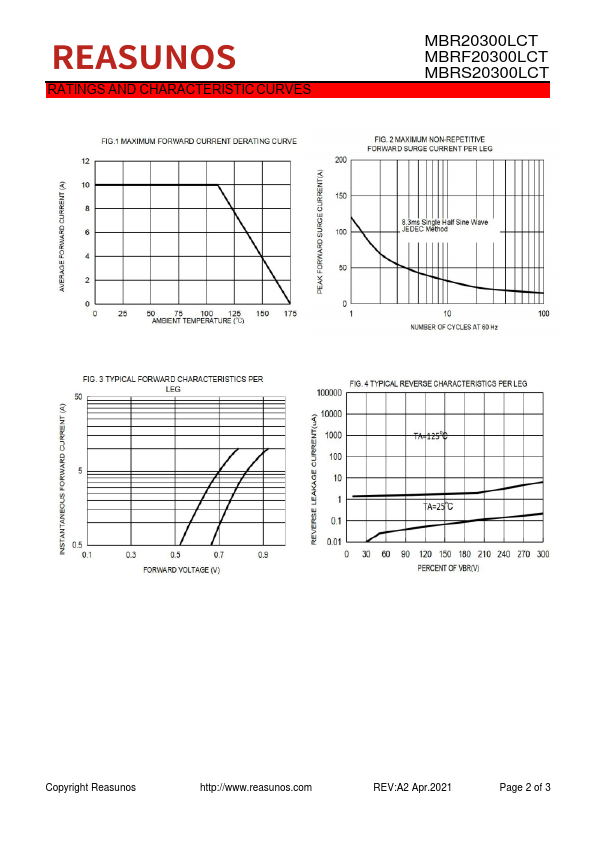

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF20300LCT, MBR20300LCT
Manufacturer
Reasunos
File Size
937.35 KB
Datasheet
MBR20300LCT-Reasunos.pdf
Description
LOW VF SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBRF20300LCT, MBR20300LCT.
Please refer to the document for exact specifications by model.
