MBRF2035 Datasheet - Taiwan Semiconductor

MBRF2035, Isolated 20.0 AMPS. Schottky Barrier Rectifiers

MBRF2035 - MBRF20150 Isolated 20.0 AMPS.Schottky Barrier Rectifiers ITO-220AC .185(4.7) .173(4.4) .124(3.16) .118(3.00) .406(10.3) .390(9.90) .134(.

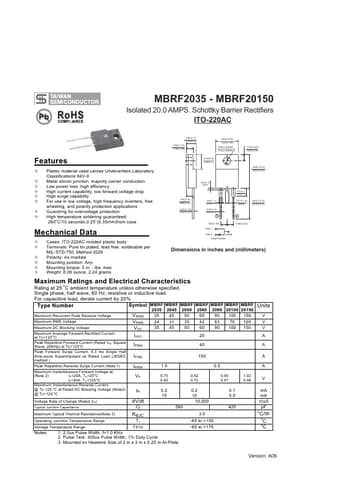

datasheet Preview Page 1 from Datasheet4u.com

MBRF2035-TaiwanSemiconductor.pdf

MBRF2035 Datasheet Preview — Preview of MBRF2035 PDF

Datasheet Details

Part number:

MBRF2035

Manufacturer:

Taiwan Semiconductor

File Size:

176.47 KB

Description:

Isolated 20.0 AMPS. Schottky Barrier Rectifiers

Features

* Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, and

Applications

* Guardring for overvoltage protection High temperature soldering guaranteed: 260oC/10 seconds,0.25”(6.35mm)from case Mechanical Data Cases: ITO-220AC molded plastic body Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any Mounting
