S5BC SURFACE MOUNT GLASS PASSIVATED RECTIFIERS

S5BC Features

* Glass passivated chip For surface mounted applications Low reverse leakage current Low forward voltage drop High current capability Plastic material has UL flammability classification 94V-0 MECHANICAL DATA Case : Molded plastic Polarity : Color band denotes cathode Weight : 0.007 ounces, 0.21 grams

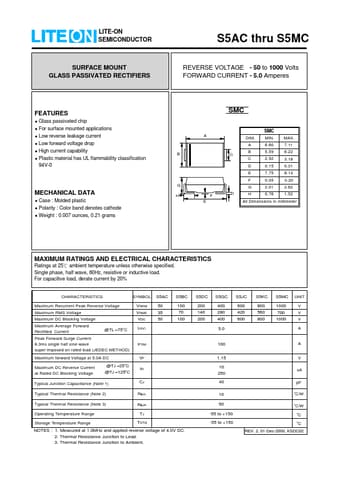

S5BC-LITE-ON.pdf

S5BC Datasheet Preview — This datasheet PDF includes multiple part numbers: S5BC, S5BC-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S5BC, S5BC-LITE

Manufacturer:

LITE-ON

File Size:

31.89 KB

Description:

Surface mount glass passivated rectifiers.

Note:

This datasheet PDF includes multiple part numbers: S5BC, S5BC-LITE.
Please refer to the document for exact specifications by model.
