SBL2050PT Description

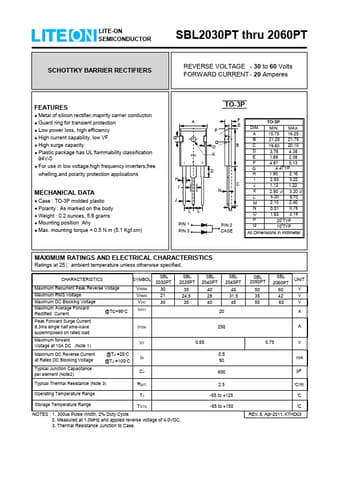

LITE-ON SEMICONDUCTOR SCHOTTKY BARRIER RECTIFIERS SBL2030PT thru 2060PT REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 20 Amperes .SBL2050PT Features
* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and polSBL2050PT Applications
* MECHANICAL DATA Case : TO-3P molded plastic Polarity : As marked on the body Weight : 0.2 ounces, 5.6 grams Mounting position :Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) TO-3P A G PIN 123 H I J LL PIN 1 PIN 3 P Q O K D N F E B C M PIN 2 CASE TO-3P DIM. MIN. MAX. A 15.75 16.25 B 21.25 2
