CNY17F-2, CNY17F-1 Datasheet - LITEON

CNY17F-2, CNY17F-1, Photocoupler

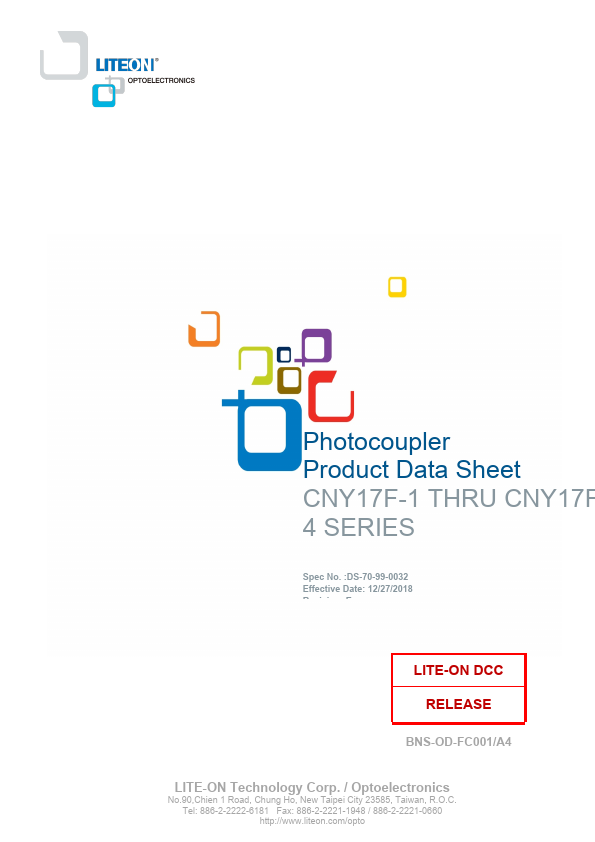

Photocoupler Product Data Sheet CNY17F-1 THRU CNY17F 4 SERIES Spec No.:DS-70-99-0032 Effective Date: 12/27/2018 Revision: E LITE-ON DCC RELEASE BNS-O.
1.

datasheet Preview Page 1 from Datasheet4u.com

CNY17F-1-LITEON.pdf

CNY17F-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: CNY17F-2, CNY17F-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CNY17F-2, CNY17F-1

Manufacturer:

LITEON

File Size:

406.04 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: CNY17F-2, CNY17F-1.
Please refer to the document for exact specifications by model.

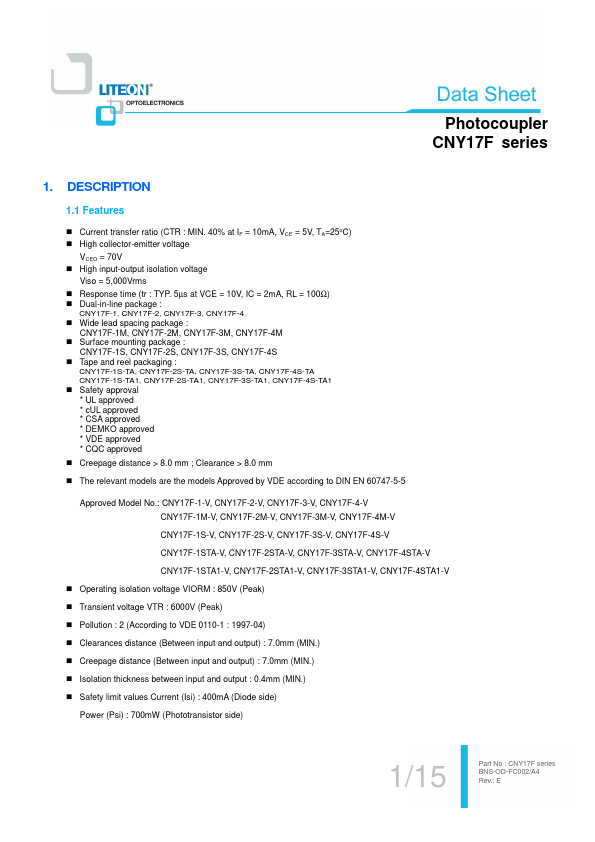

Features

* Current transfer ratio (CTR : MIN. 40% at IF = 10mA, VCE = 5V, TA=25oC) High collector-emitter voltage VCEO = 70V High input-output isolation voltage Viso = 5,000Vrms Response time (tr : TYP. 5µs at VCE = 10V, IC = 2mA, RL = 100Ω) Dual-in-line package : CNY17F-1, CNY17F-2, CNY17F-3, CNY17F-4 Wide le

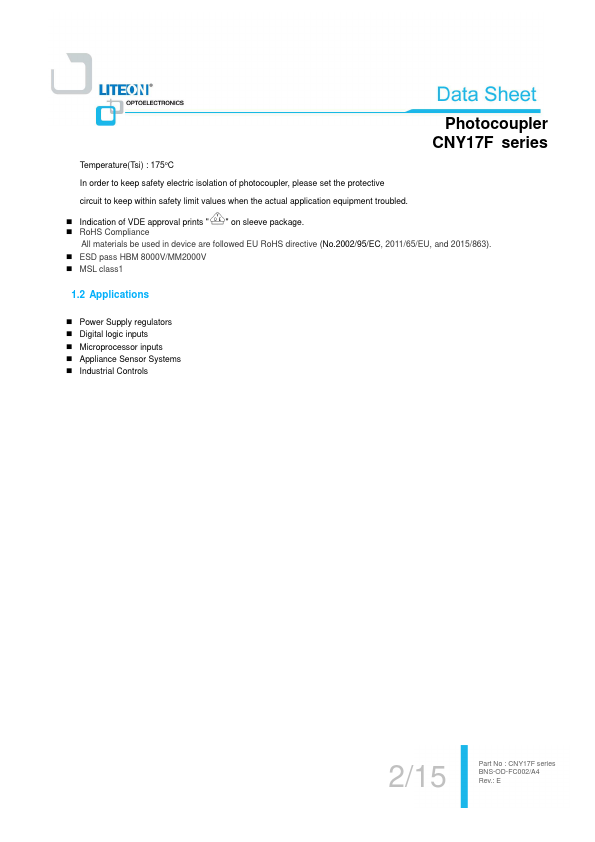

Applications

* Power Supply regulators Digital logic inputs Microprocessor inputs Appliance Sensor Systems Industrial Controls 2/15 Part No : CNY17F series BNS-OD-FC002/A4 Rev. : E 2. PACKAGE DIMENSIONS 2.1 CNY17F-1, CNY17F-2, CNY17F-3, CNY17F-4 Photocoupler CNY17F series 2.2 CNY17F-1M, CNY17F-2M, CNY17F-3M, C
