LTE-3271B, IR Emitter and Detector

IR Emitter and Detector Product Data Sheet LTE-3271B Spec No.: DS50-2003-037 Effective Date: 01/29/2013 Revision: C LITE-ON DCC RELEASE BNS-OD-FC001/A.

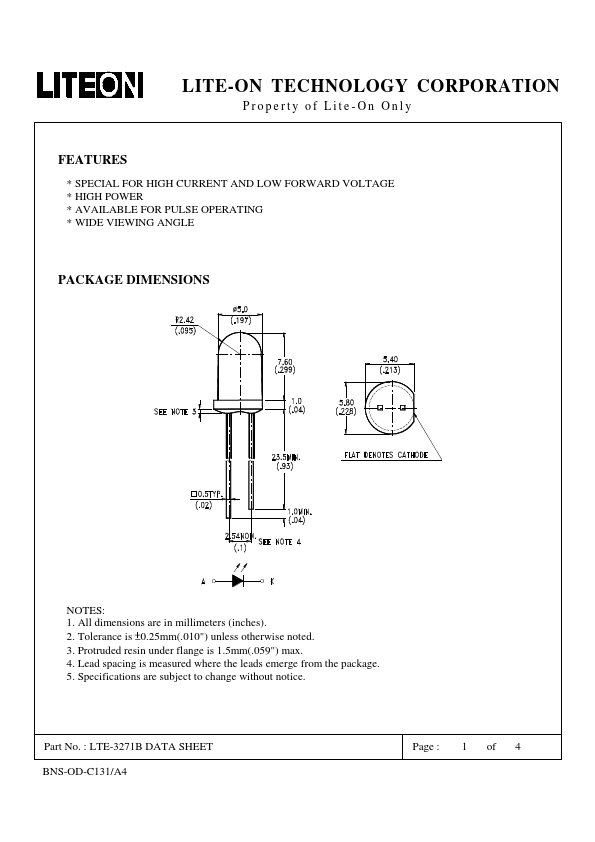

Features

* SPECIAL FOR HIGH CURRENT AND LOW FORWARD VOLTAGE
* HIGH POWER
* AVAILABLE FOR PULSE OPERATING
* WIDE VIEWING ANGLE PACKAGE DIMENSIONS NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.5
