LTE-3271T-A IR Emitter and Detector

LITEON

Description

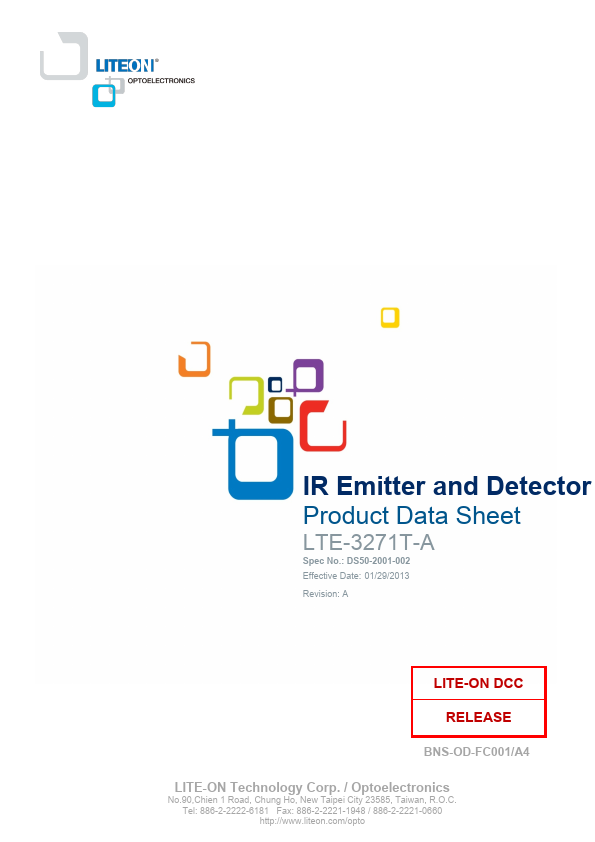

IR Emitter and Detector Product Data Sheet LTE-3271T-A Spec No.: DS50-2001-002 Effective Date: 01/29/2013 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001.

📥 Download Datasheet

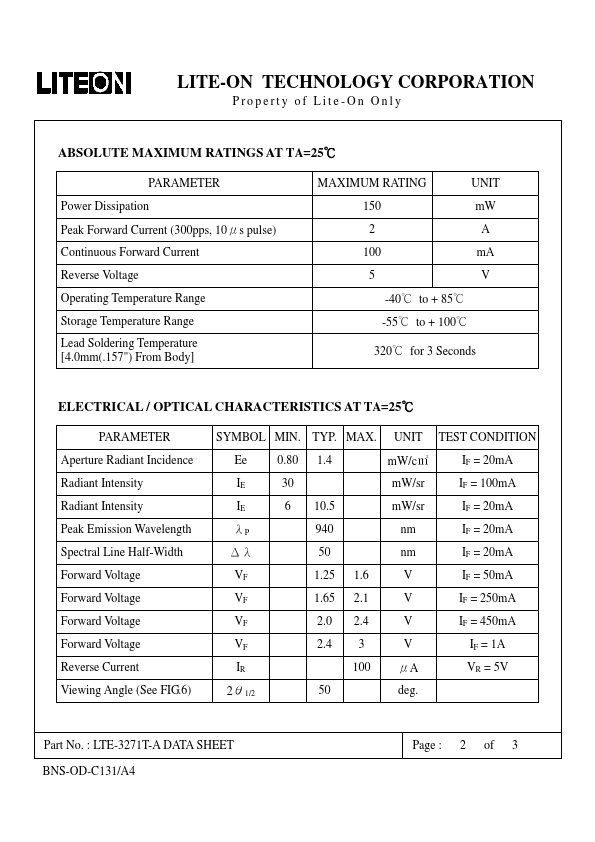

LTE-3271T-A Datasheet Preview — Preview of LTE-3271T-A PDF

Datasheet Specifications

Part number: LTE-3271T-A
Manufacturer: LITEON
File Size: 251.69 KB
Datasheet: LTE-3271T-A-LITEON.pdf
Description: IR Emitter and Detector

Features

* SPECIAL FOR HIGH CURRENT AND LOW FORWARD VOLTAGE
* HIGH POWER
* AVAILABLE FOR PULSE OPERATING
* WIDE VIEWING ANGLE
* WATER CLEAR PACKAGE

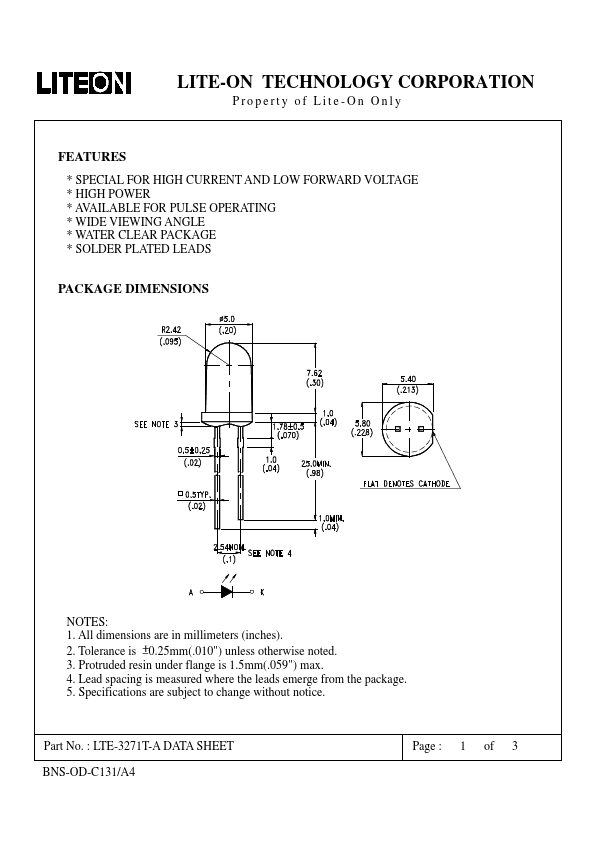

* SOLDER PLATED LEADS PACKAGE DIMENSIONS NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless oth
