LTE-4208 IR Emitter and Detector

LITEON

Description

Infrared Product Data Sheet LTE-4208 Spec No.:DS-50-92-0015 Effective Date: 02/27/2024 Revision: D LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Techno.
LTE-4208 series is a 940nm IR emitting diode with high radiant power. Wate.

📥 Download Datasheet

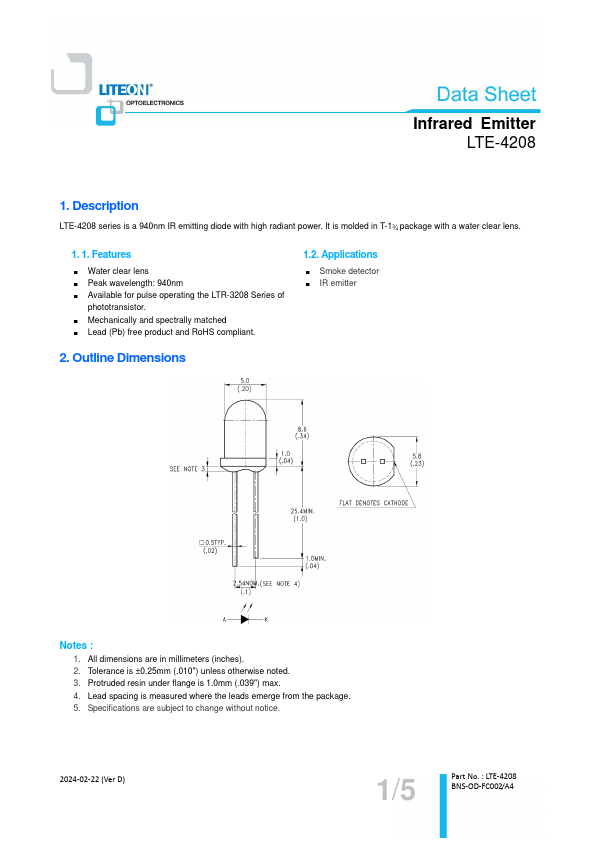

LTE-4208 Datasheet Preview — Preview of LTE-4208 PDF

Datasheet Specifications

Part number: LTE-4208
Manufacturer: LITEON
File Size: 269.80 KB
Datasheet: LTE-4208-LITEON.pdf
Description: IR Emitter and Detector

Features

* Water clear lens
* Peak wavelength: 940nm
* Available for pulse operating the LTR-3208 Series of phototransistor.
* Mechanically and spectrally matched

Applications

* Smoke detector
* IR emitter Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.039") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subje
